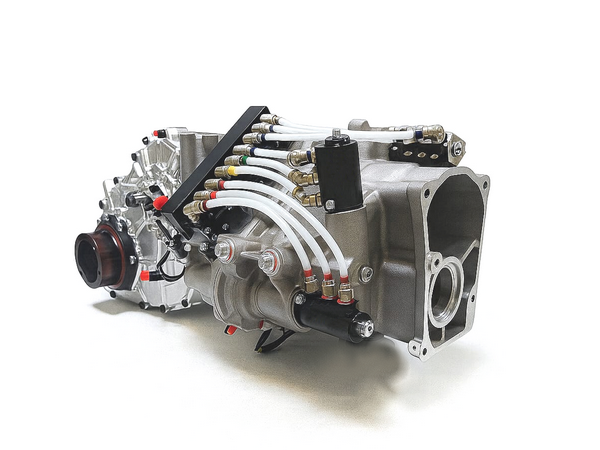

NTHP.

Applications

+

Specifications

• Multi-speed gearbox with grid-type control and keyed shifters: 5 ICE gears, 2 electric gears


• x1 ICE engine input + x1 EV motor input (parallel)

• Torque capacity for ICE and electric motor : depending on ratios, duty cycle and application (minimum 300 N.m ICE for T3 offroad application with 32" wheels + maximum 300 N.m electric)

• Max EV motor speed : 10 000rpm

• Option for 'charge' mode, thermal movement to MGU only

• Wide range of ratios

• Differential outputs 90° to the ICE engine and electric motor inputs

• Discs and ramps LSD, 12 friction faces, wide range of ramps

  → Quick maintenance (opening with flange)

• Integrated oil pump + circuit + steel filter cartridge

• AS7G aluminium housings

• AAR tripod flanges

• Bosses for temperature and nprim FIA sensors (sensors not included)

• External power take-off (PTO) for alternator

Options et Accessories

• Engine spacer

• Tripod accessories
